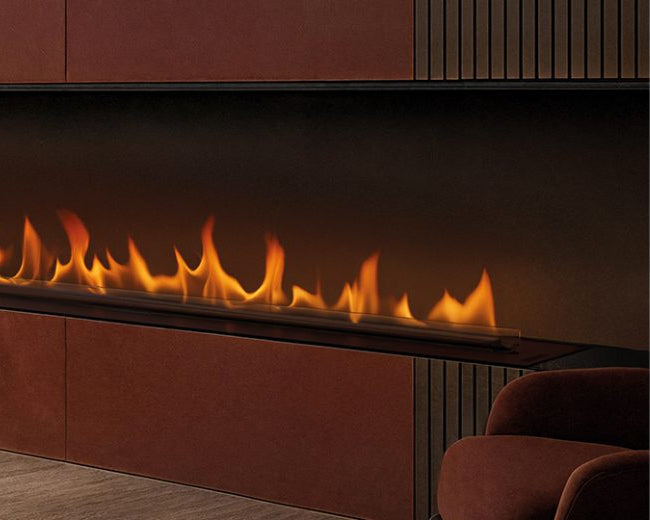

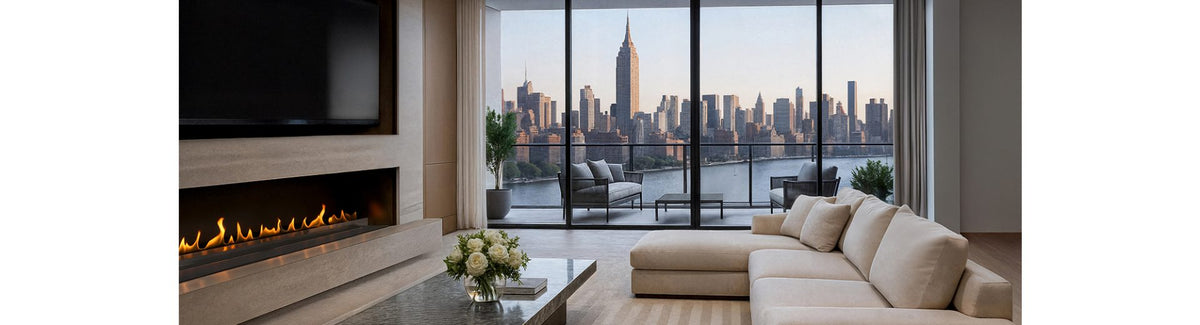

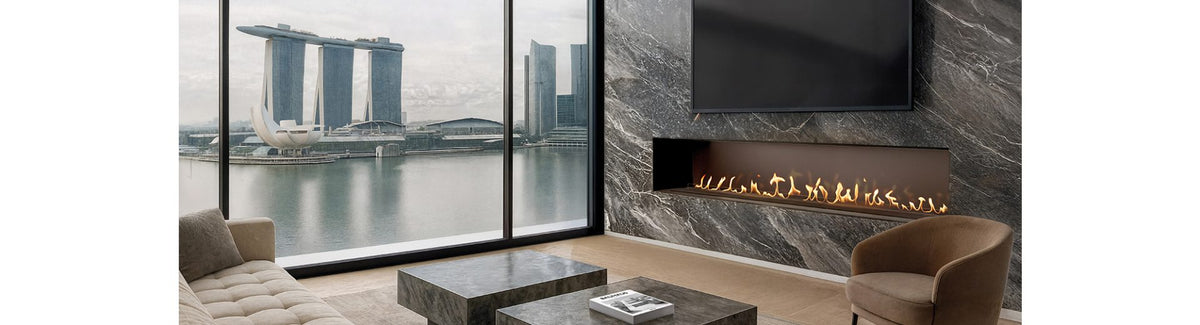

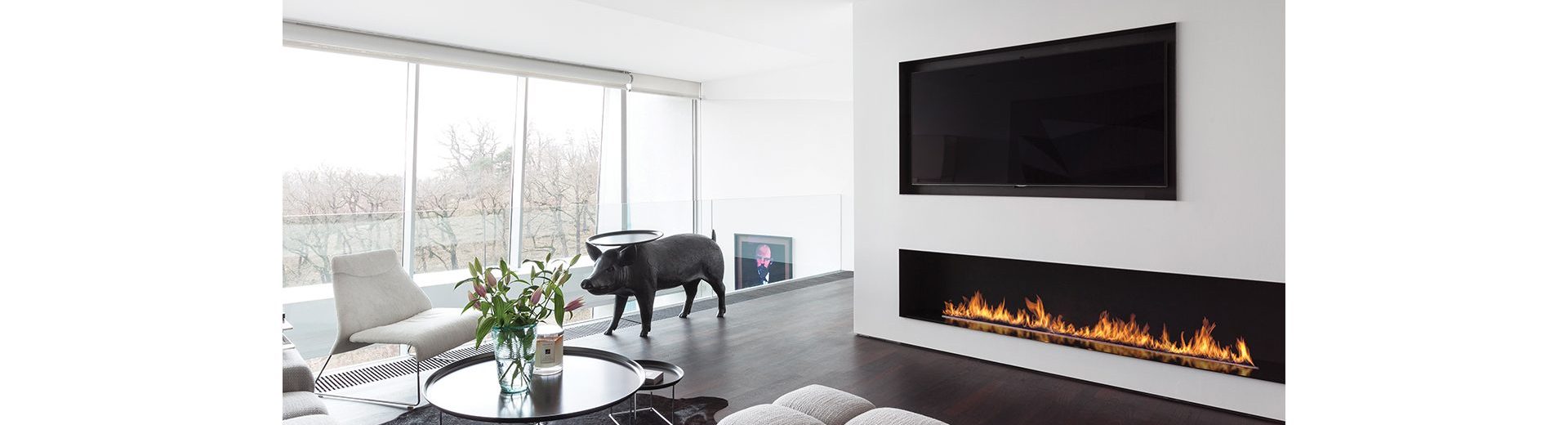

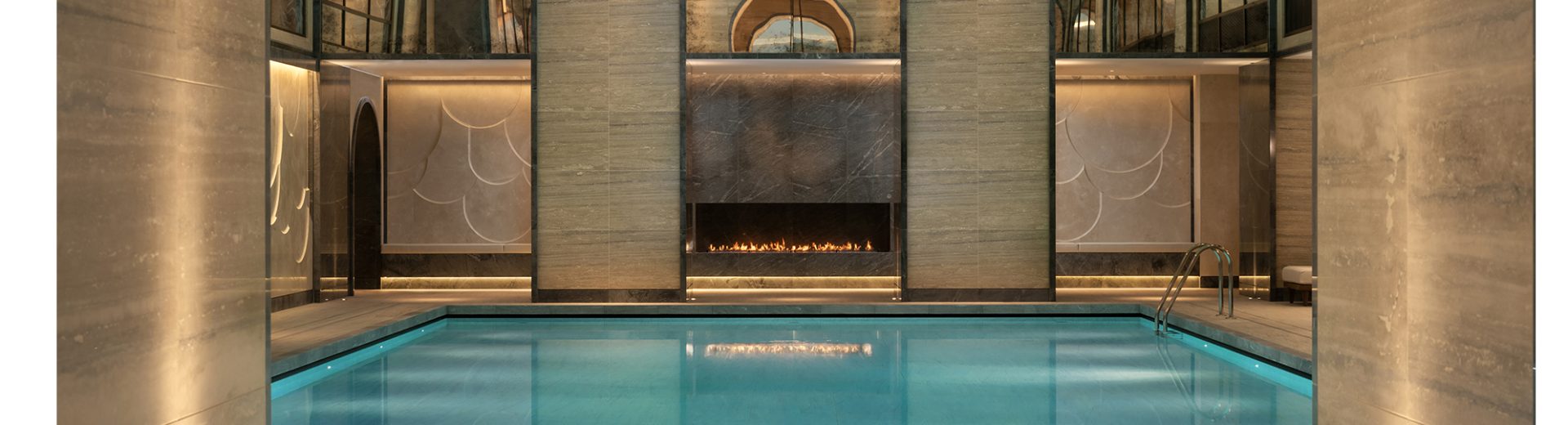

FLA4 Linear fireplace with BEV technology
Long linear ethanol insert designed for built-in installations
FLA4 is an automatic linear ethanol insert designed for built-in projects (no chimney required). It’s a premium solution for modern interiors and architectural applications.
- Customizable finish options

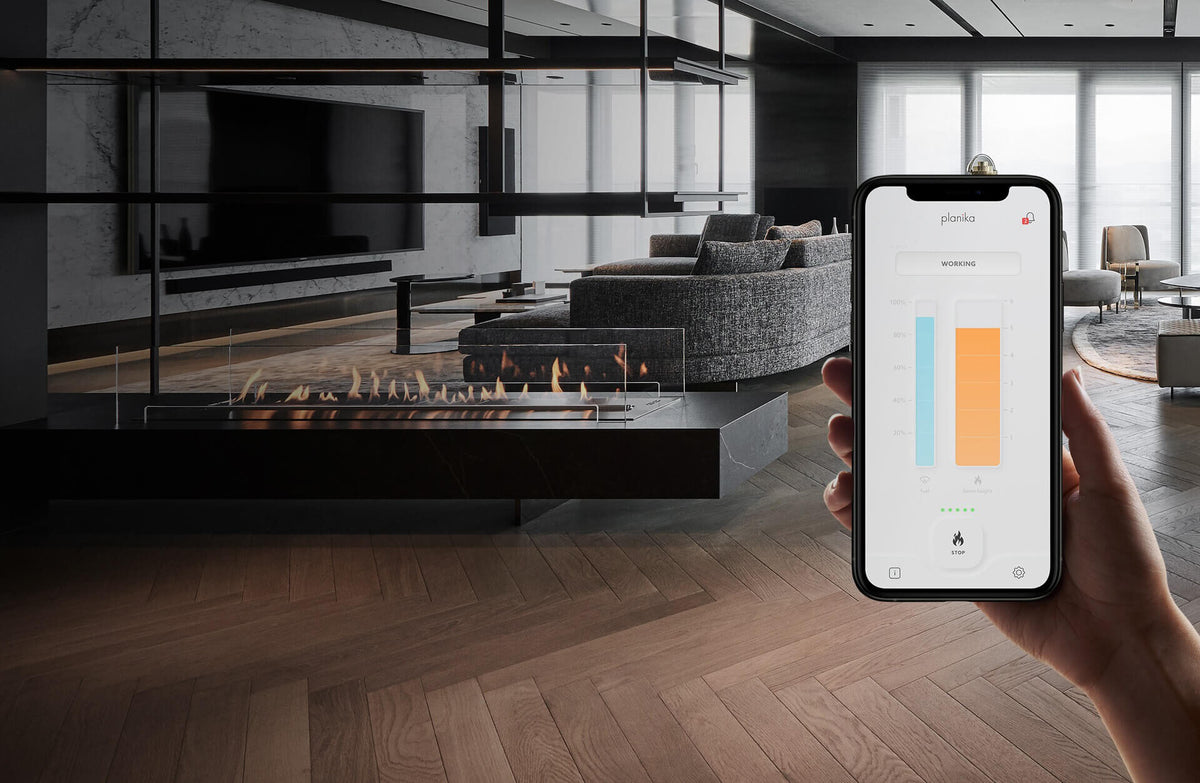

- Wireless control – remote or mobile app
- Optional SHS
- Automatic refuelling system
- 5-year warranty
Different types
FLA4
Built-in fireplace insert
- insert height:
- 220 mm
- capacity:
- 3.1 L - 14.8 L
- max burning time up to:
- 5-10 hrs
- flame height:
- 6 stages
- Length:
- 590-2490 mm
- remote control:
- yes
Choose your FLA4
Select a length and model. Prices shown are reference pricing.
| Product | Dimensions length – height – depth |
Burning time | Downloads | |
|---|---|---|---|---|
|
FLA4 590 Burner | 590 × 220 × 280 mm | Up to 5 h | |
|
FLA4 790 Burner | 790 × 220 × 280 mm | Up to 8 h | |
|
FLA4 990 Burner | 990 × 220 × 280 mm | Up to 8 h | |
|
FLA4 1190 Burner | 1190 × 220 × 280 mm | Up to 9 h | |
|
FLA4 1490 Burner | 1490 × 220 × 280 mm | Up to 9 h | |
|
FLA4 1990 Burner | 1990 × 220 × 280 mm | Up to 10 h | |
|
FLA4 2490 Burner | 2490 × 220 × 280 mm | Up to 10 h |
Dimensions590 × 220 × 280 mm
Burning timeUp to 5 h
Dimensions790 × 220 × 280 mm
Burning timeUp to 8 h
Dimensions990 × 220 × 280 mm
Burning timeUp to 8 h
Dimensions1190 × 220 × 280 mm
Burning timeUp to 9 h
Dimensions1490 × 220 × 280 mm
Burning timeUp to 9 h
Dimensions1990 × 220 × 280 mm
Burning timeUp to 10 h
Dimensions2490 × 220 × 280 mm
Burning timeUp to 10 h
Technical specification
- Flue
- Not required
- Fuel type
- Bioethanol 95–96.6%
- Power supply
- 230V
- Finish
- Black powder coating
- Materials
- Steel, galvanized steel, toughened glass
- Application
- Indoor use only

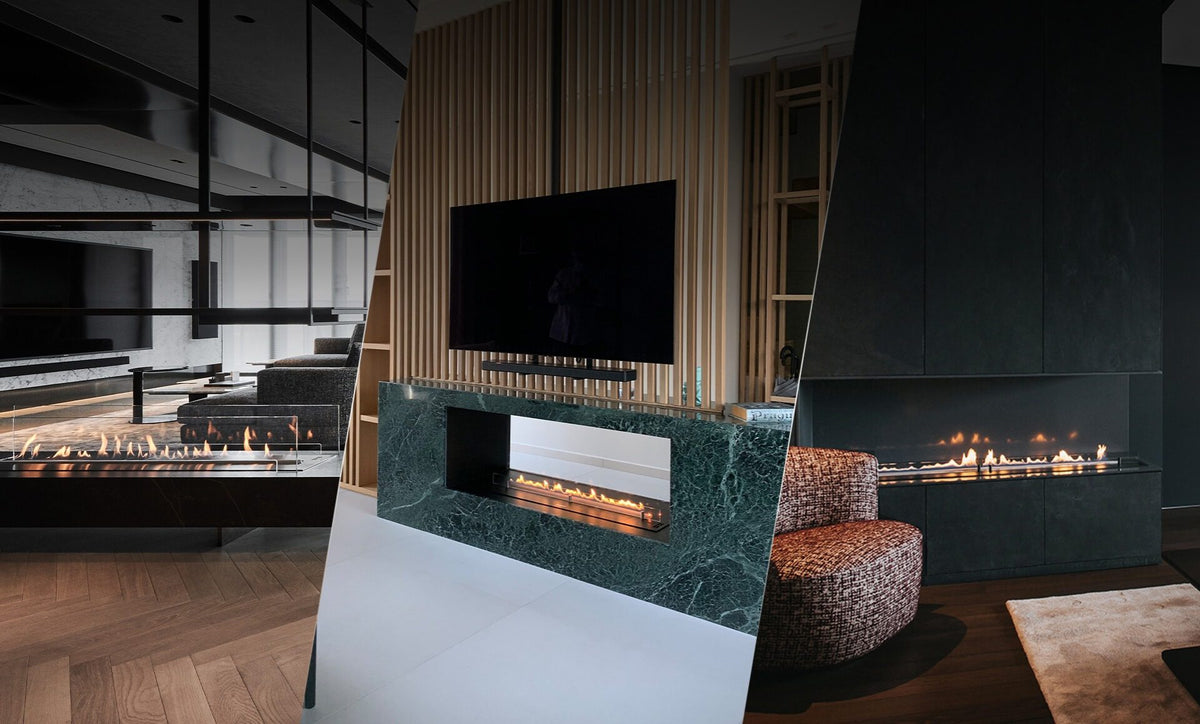

One FLA – Firebox Options
FLA4 can be installed in various arrangement options
ISLAND
SINGLE-SIDED
L/R CORNER
THREE-SIDED
ROOM DIVIDER
TUNNEL

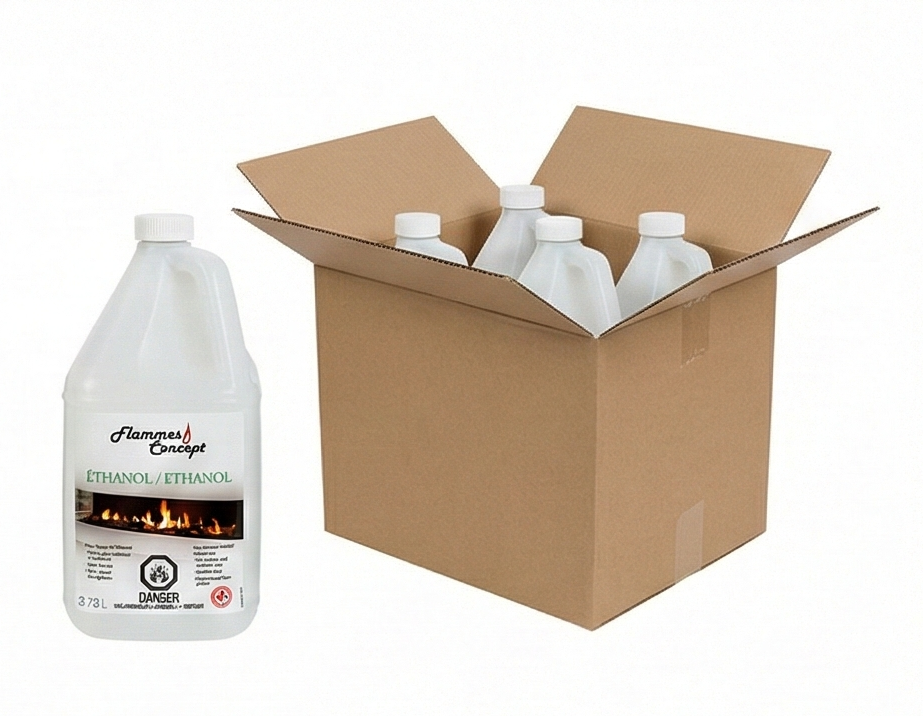

Refills & Ethanol Bottles
Refilling system
FLA4 can be paired with an automatic refill pump for faster, cleaner refuelling. The system helps reduce spills and supports safe top-ups.

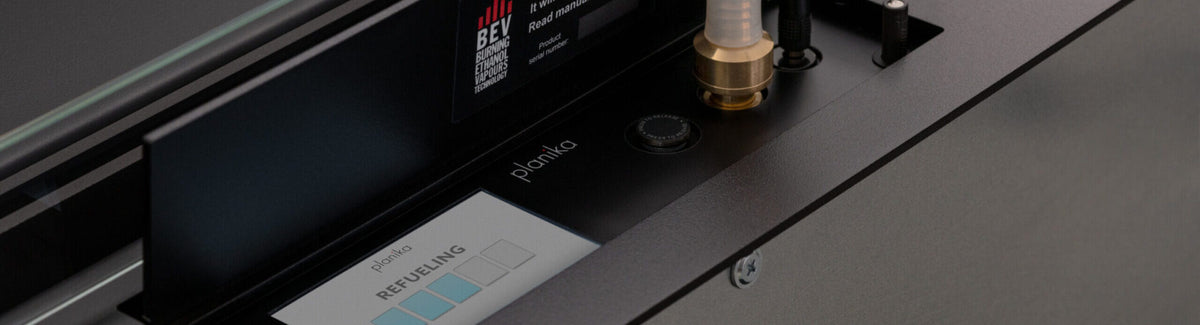

Control

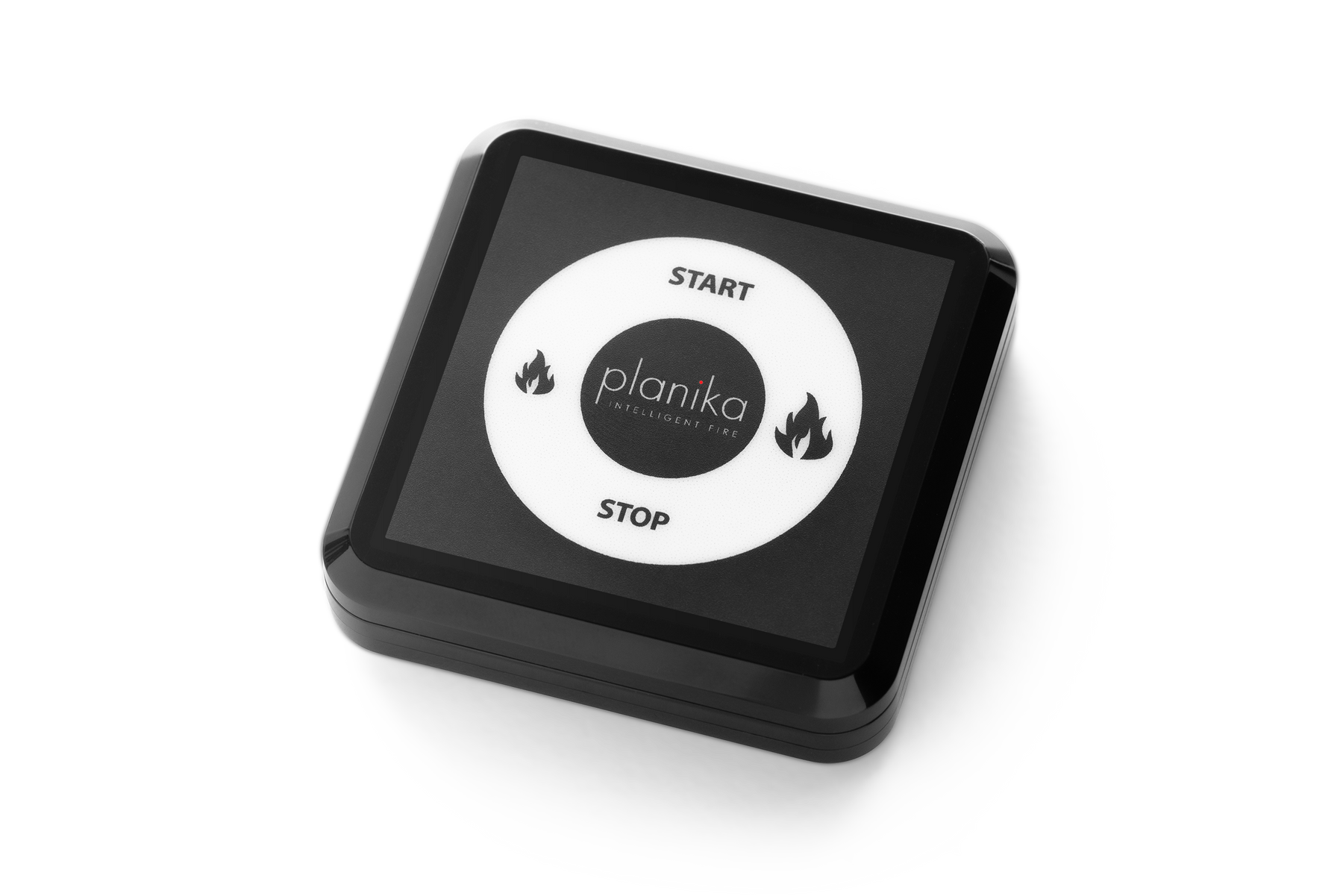

Innovative touch panel control
A discreet touch panel lets you adjust flame level, check fuel status, set a timer, and activate a child-lock option.
BEV technology
Cleaner combustion design
BEV (Burning Ethanol Vapours) is designed to burn ethanol vapours efficiently. For many projects, it’s a cleaner alternative to fossil fuel fireplaces and works without a chimney.
Safety first
Key safety systems for automatic ethanol fireplaces
Temperature sensors
Multiple sensors monitor heat zones and can trigger protective shut-downs.
Fuel level sensor
Helps monitor fuel level and can prevent operation when fuel is too low.
Seismic sensors
Designed to react to abnormal movement and improve operational safety.
Spillage sensor
Reduces risk by detecting unexpected liquid presence.
Robust construction
Steel construction and protective elements support stable operation.
Fuel retrieval system
System logic designed to limit fuel exposure during abnormal conditions.
Optional accessories
Add-ons to propose as upsell / cross-sell
Refill fuel bottles
Glass screens*
Tray with logs or stones
Order consultation
Want help choosing the right length, finish, and installation layout? Our team can guide you and prepare a quote.
